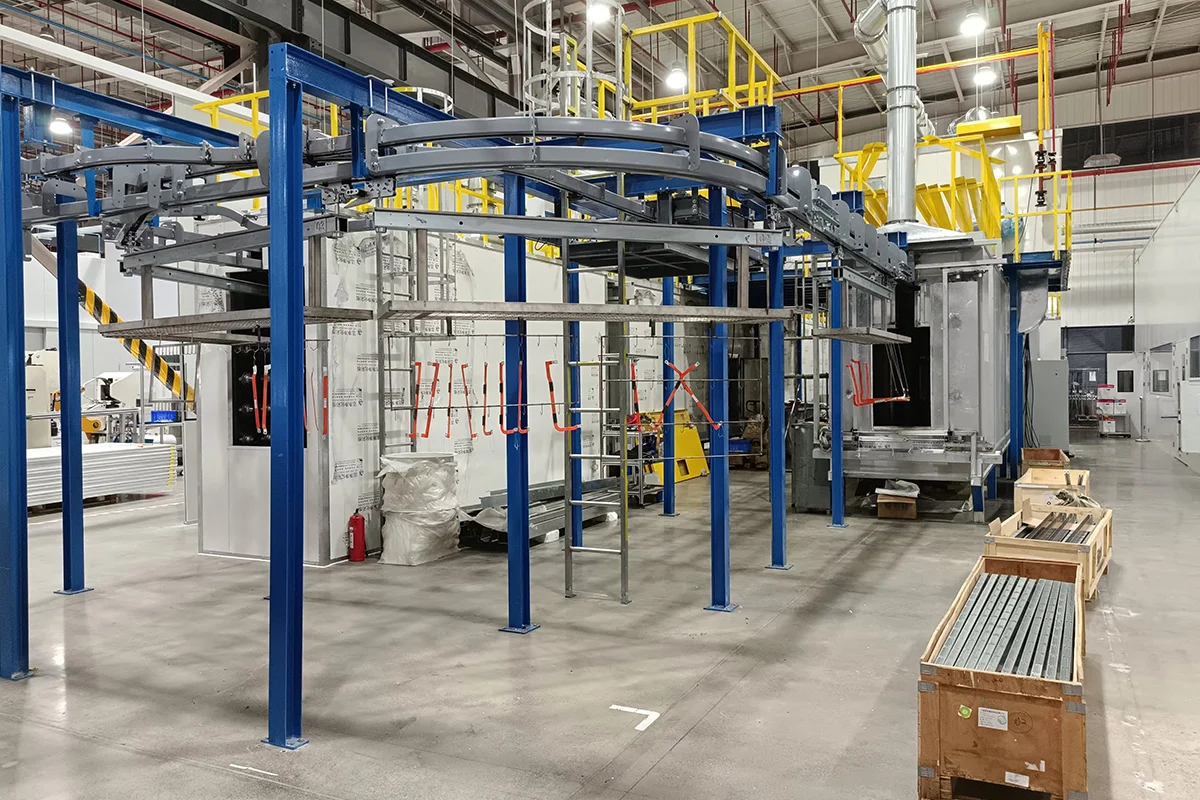

Conductive Busbar Coating Line

I. Introduction

The conductive busbar coating line is an automated coating system specifically designed for surface treatment of conductive busbars in power equipment, electrical cabinets, transformers, and related applications. Coating enhances the busbar’s corrosion resistance, moisture resistance, insulation, and aesthetic appeal.

II. Application Areas

1. Power Equipment

• Transformers: Coating conductive busbars in transformers to improve insulation and corrosion resistance.

• Switchgear Cabinets: Coating busbars inside switchgear cabinets to enhance electrical performance and protection.

2. New Energy

• Photovoltaic Inverters: Coating busbars in photovoltaic inverters to improve weather resistance and electrical performance.

• Wind Power Generation: Coating busbars in wind power equipment to enhance corrosion resistance and insulation.

3. Rail Transit

• High-Speed Rail and Metro Systems: Coating busbars in electrical systems of rail transit for improved stability and safety.

4. Industrial Automation

• Automation Equipment: Coating busbars in industrial automation systems to enhance electrical performance and protection.

5. Home Appliance Manufacturing

• Household Appliances: Coating busbars in household appliances to improve insulation and corrosion resistance.

6. Automotive Manufacturing

• Electric Vehicles: Coating busbars in battery and motor systems of electric vehicles to enhance electrical performance and protection.

7. Communication Equipment

• Base Stations and Communication Devices: Coating busbars in communication equipment to enhance electrical performance and protection.

III. Technical Overview

1. Basic Principles

• Powder coating or fluidized bed dipping is used to evenly coat the conductive busbar surface. After curing, a durable and robust coating is formed.

2. Core Process Flow

• Preheating: The workpiece is heated to promote powder adhesion and melting.

• Manual Spraying: Powder is electrostatically sprayed onto the workpiece for uniform coverage.

• Dipping Coating: Suitable for small parts, where the powder adheres evenly through a fluidized bed.

• Curing: The powder is fully cured at high temperatures, forming a durable coating.

• Cooling: The coated workpiece is cooled to ensure coating stability.

IV. Technical Advantages

• High-Efficiency Coating: Automated equipment ensures efficient and uniform coating while minimizing material waste.

• Superior Coating Quality: Advanced processes guarantee uniform coatings with strong adhesion, improving product performance.

• Eco-Friendly and Energy-Saving: Low-VOC coatings and energy-efficient equipment reduce pollution and energy consumption, meeting environmental standards.

• Smart Monitoring: Real-time monitoring and data analysis optimize production and enhance quality control.

• Flexible Production: The system is designed for multi-variety, small-batch production to meet diverse market demands.

• Enhanced Durability: High-performance coatings and advanced processing improve corrosion resistance and wear resistance, extending product lifespan.

V. Development Trends

1. Automation and Intelligence

• Automation: Full automation reduces manual intervention and increases efficiency.

• Intelligent Systems: AI and IoT integration enables real-time monitoring, data analysis, and smart decision-making.

2. Eco-Friendly and Energy-Efficient Solutions

• Sustainable Materials: Use of low-VOC coatings to minimize environmental impact.

• Energy-Saving Technologies: High-efficiency drying and curing equipment to reduce energy consumption.

3. High Efficiency and Quality

• Optimized Production: Improved processes to shorten production cycles.

• Superior Coating Performance: Enhanced adhesion and uniformity for increased product durability.

4. Customization and Flexibility

• Custom Coatings: Adaptable to specific customer requirements.

• Flexible Production: Suitable for multi-product, small-batch production to enhance market competitiveness.

5. New Materials and Advanced Processes

• Innovative Coatings: Development of high-performance coatings with improved conductivity and corrosion resistance.

• Advanced Technologies: Adoption of nano-coatings, plasma spraying, and other cutting-edge techniques.
