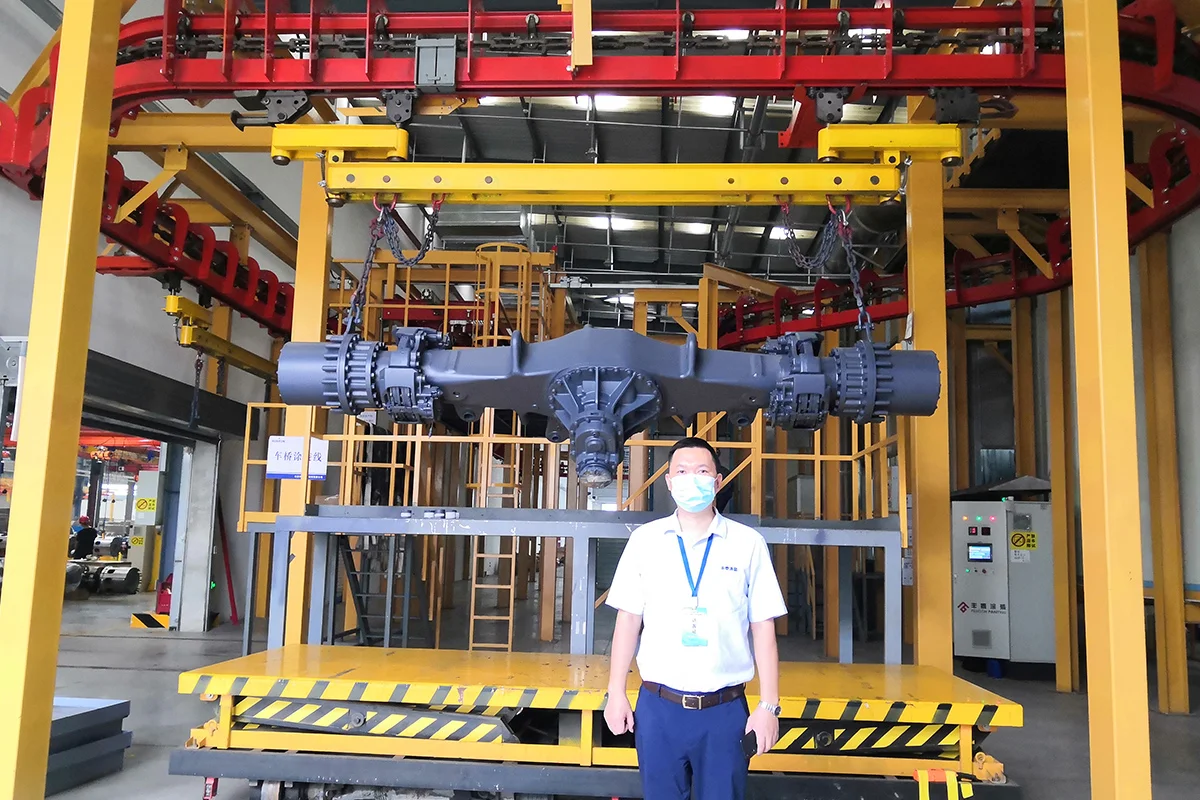

Axle Spray Painting Line

I. Introduction

The axle spray painting line is an automated coating system specifically designed for axle surface treatment. It covers pre-treatment, painting, curing, and post-treatment to ensure uniform coating, strong adhesion, and durability.

II. Application Areas

1. Automotive Manufacturing

• Passenger Vehicles: Used for drive axles and steering axles of cars and SUVs.

• Commercial Vehicles: Suitable for truck and bus axles.

2. Construction Machinery

• Applied to excavators, loaders, and bulldozers for axle coating.

3. Agricultural Machinery

• Used for tractors and harvesters to improve axle durability.

4. Special-Purpose Vehicles

• Includes military vehicles, fire trucks, ambulances, railway vehicles, and metro trains.

5. Industrial Equipment

• Industrial Vehicles: Axle coating for forklifts and material-handling equipment.

• Heavy Equipment: Suitable for large-scale machinery axles.

III. Technical Overview

1. Basic Principles

• This system utilizes automated or semi-automated processes to evenly apply coatings on axle surfaces, creating a protective layer that improves corrosion resistance, rust prevention, and aesthetics.

2. Core Process Flow

• Pre-Treatment

• Cleaning: Removal of oil, rust, and surface contaminants using spray washing, immersion, or ultrasonic cleaning.

• Rust Removal: Shot blasting or sandblasting ensures a suitable surface roughness for paint adhesion.

• Phosphating: Creates a phosphate film to enhance corrosion resistance and adhesion.

• Primer Coating

• Electrostatic Spraying: Uses electrostatic spray guns for uniform primer application.

• Drying: Curing process in a drying oven after primer application.

• Intermediate Coating

• Intermediate Layer: Additional coating to fill micro-defects and enhance anti-corrosion properties.

•  Drying: Second drying and curing process.

• Topcoat Application

• Final Coating: Ensures color consistency and surface gloss.

• Curing: Final drying process to solidify the topcoat.

• Cooling

• Post-Curing Cooling: The axles are cooled down before the next stage of production.

IV. Technical Advantages

1. High Automation

• Robotic painting improves precision and uniformity.

• Automated conveyor systems optimize workflow efficiency.

2. Eco-Friendly Processing

• Uses water-based and low-VOC paints to reduce hazardous emissions.

• Integrated exhaust gas treatment effectively filters and purifies VOCs.

3. Superior Coating Quality

• Even paint application ensures strong adhesion, corrosion resistance, and wear resistance.

• Multi-layer coating techniques provide extended protection and durability.

4. High Production Efficiency

• Continuous operation design minimizes downtime and maximizes throughput.

• Fast color-switching system reduces downtime for multi-product manufacturing.

5. Intelligent Monitoring & Management

• PLC & MES system integration allows real-time process monitoring and data analysis.

• Fault diagnostics and predictive maintenance reduce unexpected downtime.

V. Development Trends

1. Intelligent & Digital Optimization

• AI-powered learning improves spray path and parameter optimization.

• Digitalized management increases process transparency and efficiency.

2. Green & Sustainable Coating Solutions

• Expansion of green coatings to reduce VOC emissions.

• Implementation of energy-efficient equipment to lower power consumption.

3. Flexible & Customizable Production

• Designed for multi-product, small-batch manufacturing with quick process adjustments.

• Modular system design allows for scalability and customization.

4. Advanced Coating Quality

• Development of high-performance paints for improved corrosion and wear resistance.

• Utilization of cutting-edge spray technology to ensure uniform and durable coatings.

5. Integration & Standardization

• Seamless integration with upstream and downstream processes, improving overall production efficiency.

• Adoption of standardized designs to reduce maintenance costs and streamline operations.
