Powder Coating Line

I. Introduction

The powder coating line is an automated surface treatment system widely used for coating metal, plastic, and other materials. With its high efficiency, environmental friendliness, superior coating quality, and wide applicability, powder coating lines have become an essential part of modern manufacturing.

II. Application Areas

• Home Appliances: Refrigerators, washing machines, air conditioners, etc.

• Automotive Industry: Car bodies, wheels, chassis, etc.

• Building Materials: Aluminum alloy doors and windows, curtain walls, etc.

• Furniture: Metal furniture, office furniture, etc.

• Others: Electronic products, sports equipment, valves, etc.

III. Technical Overview

1. Basic Principles

• Using the electrostatic adsorption principle, powder coatings are evenly sprayed onto workpiece surfaces. After curing, a durable and uniform coating is formed through an automated production line.

2. Core Process Flow

• Pre-Treatment

• Degreasing: Removes oil and contaminants from the workpiece surface.

• Rinsing: Washes off residual degreasing agents.

• Surface Conditioning: Enhances surface activity to improve coating adhesion.

• Phosphating: Forms a phosphate layer to enhance corrosion resistance and adhesion.

• Rinsing: Removes residual phosphating solution.

• Drying: Fully dries the workpiece.

•  Powder Coating

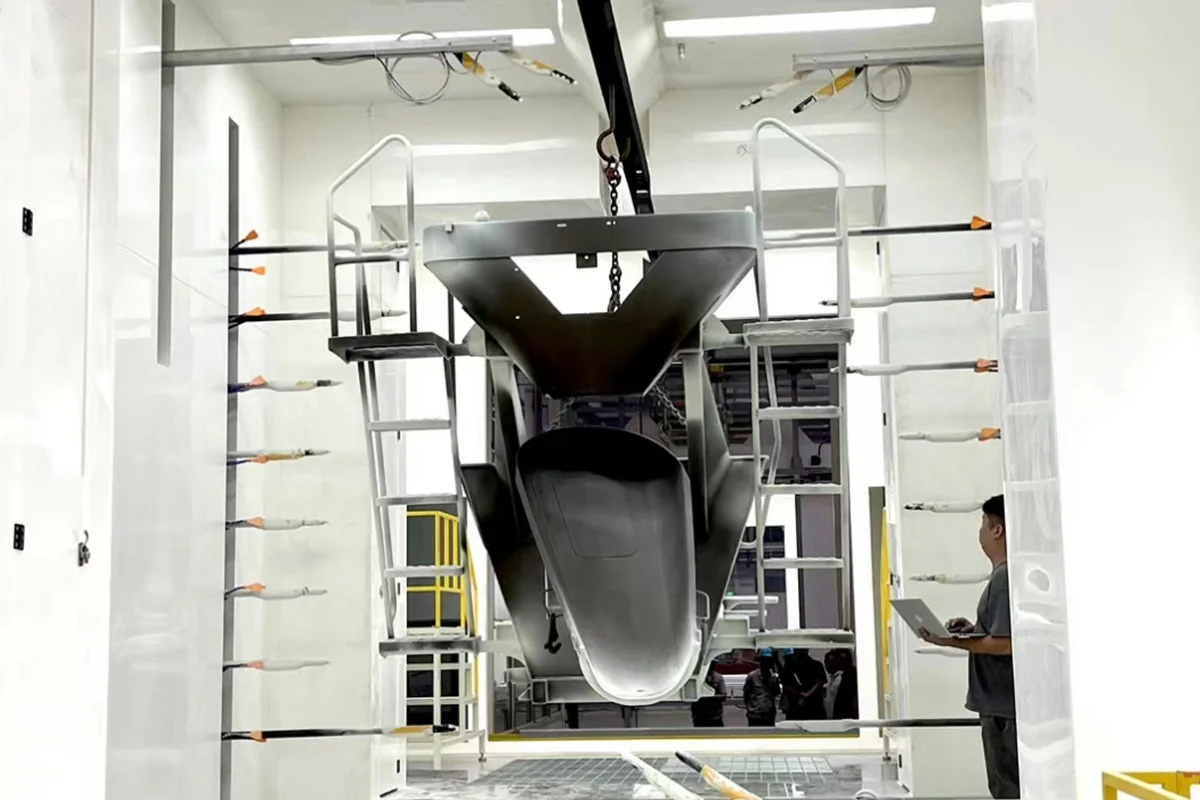

• Electrostatic Spraying: Uses electrostatic adsorption to evenly coat the workpiece with powder.

• Manual Touch-Up: Manually sprays complex areas to ensure complete coverage.

•  Curing

• Baking: Heats the coated workpiece in a curing oven to melt and solidify the powder coating into a durable layer.

• Cooling: Naturally or forcibly cools the workpiece to room temperature.

•  Post-Treatment

• Inspection: Evaluates coating quality, including thickness and adhesion.

• Touch-Up: Locally repairs defects.

• Packaging: Packs qualified products for shipment.

IV. Technical Advantages

• High Efficiency and Energy Saving: High powder utilization reduces waste.

• Environmental Protection: No volatile organic compounds (VOCs), meeting environmental standards.

• Superior Coating Quality: Uniform coating with strong adhesion, corrosion resistance, and wear resistance.

• High Automation: Reduces manual labor and improves efficiency.

• Strong Adaptability: Suitable for various materials and complex-shaped workpieces.

V. Development Trends

1. Automation and Intelligence

• Automation: Powder coating lines are becoming fully automated, reducing manual intervention and improving efficiency.

• Intelligent Control: IoT, big data, and AI technologies enable real-time monitoring, fault diagnosis, and process optimization.

2. Environmental Protection and Energy Efficiency

• Eco-Friendly Materials: Use of low-VOC, heavy-metal-free powder coatings to minimize environmental impact.

• Energy-Saving Equipment: Adoption of high-efficiency spray guns, recycling systems, and energy-efficient curing ovens to reduce energy consumption.

3. High Efficiency and High Quality

• Advanced Spraying Techniques: Improvements such as electrostatic spraying and high-speed rotary cup spraying enhance efficiency and uniformity.

• Superior Coating Performance: Advanced processes ensure coatings with excellent adhesion, wear resistance, and corrosion protection.

4. Flexible Production

• Multi-Product, Small-Batch Capabilities: Adaptation to diverse product lines and small-batch production increases flexibility.

• Quick Color Change Systems: Optimized systems reduce color change times and minimize material waste.

5. Digitalization and Information Management

• Digital Production Management: Integration with MES and ERP systems enables full-process digital control.

• Real-Time Monitoring: Sensors and data analytics optimize production efficiency and quality.

6. New Materials and Advanced Processes

• Innovative Coating Materials: Development of nano-coatings and functional coatings to enhance surface performance.

• New Curing Technologies: Adoption of low-temperature curing and UV curing reduces energy consumption and increases efficiency.
